- Industrial Rotor Drum Fertilizer Pellet Making Machine
-
- Brand:GELGOOG
- PAY METHOD:WEST UNION L/C T/T CASH
- Warranty Time:12 Months
- Country Of Origin:China
-

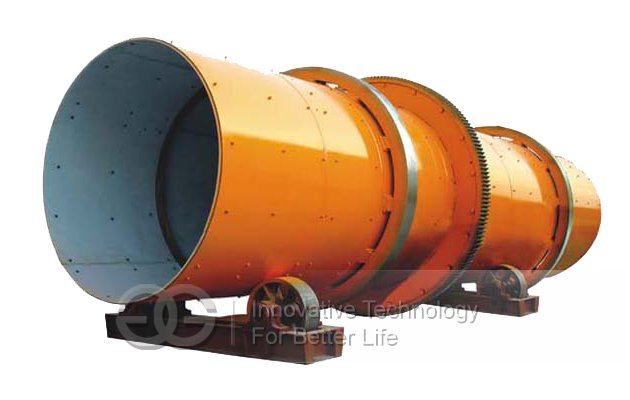

Industrial rotor drum fertilizer pellet making machine
-

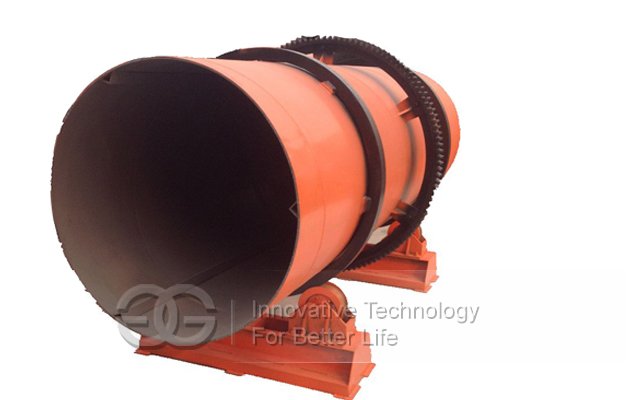

Industrial rotor drum fertilizer pellet making machine
-

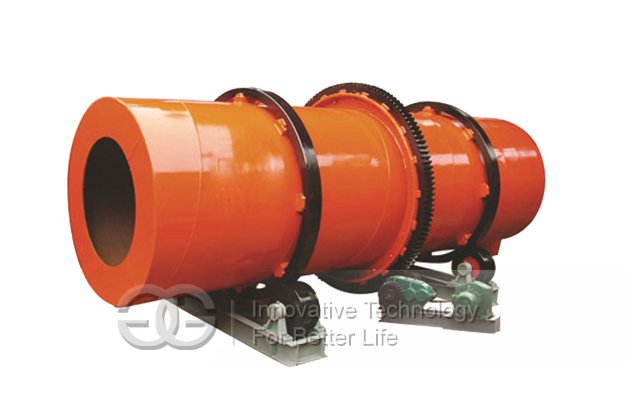

Industrial rotor drum fertilizer pellet making machine
-

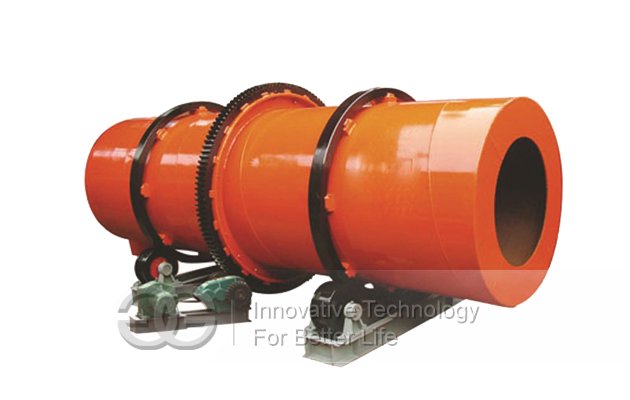

Industrial rotor drum fertilizer pellet making machine
-
Industrial rotor drum fertilizer pellet making machine
- Features
- Technical Data
- FAQ
Introduction of Industrial rotor drum fertilizer pellet making machine:
Industrial rotor drum fertilizer pellet making machine is the molding machine which can turn material into a particular shape. Drum granulator is the key equipment of compound fertilizer industry, applicable to cold, heat granulation and high and low concentration of compound fertilizer mass production.
Industrial rotor drum fertilizer pellet making machine’s working principle is:
By the main motor drive belt and pulley, through the reducer drive to drive shaft, install on the drive shaft of open gear and fixed on the body of the big gear ring gear, relative to one another.The main work way is for aggregate wet granulation, by a certain amount of water or steam, the basis of fertilizers in the cylinder body after full wet chemical reactions in liquid phase under certain conditions, by means of the rotational movement of the cylinder, so that the material between the particles pressure reunion into a ball.
Drum granulator, through the steam, gases or ammonia or nitrogen is added a solution of phosphoric acid, ammonium phosphate slurry TSP slurry machine, complete chemical reaction and heat of fertilizer granulation process in the barrel; or add a small amount of cold water fertilizer granulation process. The granulated material required by the rotational movement of the cylinder, the cylinder is not material to produce roll rotation, at a certain humidity and temperature into a cohesive ball, complete ball forming process.
Advantages of Industrial rotor drum fertilizer pellet making machine:
The fertilizer pellet ball rate is 70%, and a small amount of material back, small particle size of material back, can be regranulation; Through the steam heating, improve the material temperature, the material into a ball with low moisture, increase drying efficiency;Plastic lined with rubber, raw material easy to stick the barrel,
and play a role in anticorrosion insulation; High capacity, power consumption province, low maintenance costs.
The machine uses a special rubber plate cylinder liner or acidresistant stainless steel liners, to achieve the automatic scar, tumor, canceled the traditional scraper device. The machine has a high ball strength, good appearance, corrosion resistance, wear resistance, low energy consumption, long life, easy operation and maintenance.
Industrial rotor drum fertilizer pellet making machine is the molding machine which can turn material into a particular shape. Drum granulator is the key equipment of compound fertilizer industry, applicable to cold, heat granulation and high and low concentration of compound fertilizer mass production.
Industrial rotor drum fertilizer pellet making machine’s working principle is:
By the main motor drive belt and pulley, through the reducer drive to drive shaft, install on the drive shaft of open gear and fixed on the body of the big gear ring gear, relative to one another.The main work way is for aggregate wet granulation, by a certain amount of water or steam, the basis of fertilizers in the cylinder body after full wet chemical reactions in liquid phase under certain conditions, by means of the rotational movement of the cylinder, so that the material between the particles pressure reunion into a ball.
Drum granulator, through the steam, gases or ammonia or nitrogen is added a solution of phosphoric acid, ammonium phosphate slurry TSP slurry machine, complete chemical reaction and heat of fertilizer granulation process in the barrel; or add a small amount of cold water fertilizer granulation process. The granulated material required by the rotational movement of the cylinder, the cylinder is not material to produce roll rotation, at a certain humidity and temperature into a cohesive ball, complete ball forming process.
Advantages of Industrial rotor drum fertilizer pellet making machine:
The fertilizer pellet ball rate is 70%, and a small amount of material back, small particle size of material back, can be regranulation; Through the steam heating, improve the material temperature, the material into a ball with low moisture, increase drying efficiency;Plastic lined with rubber, raw material easy to stick the barrel,
and play a role in anticorrosion insulation; High capacity, power consumption province, low maintenance costs.
The machine uses a special rubber plate cylinder liner or acidresistant stainless steel liners, to achieve the automatic scar, tumor, canceled the traditional scraper device. The machine has a high ball strength, good appearance, corrosion resistance, wear resistance, low energy consumption, long life, easy operation and maintenance.
|
Model
|
Drum
|
Power
|
Capacity
|
Machine size
|
|||
|
Angle（。)
|
Diameter (m)
|
Length
(m) |
Rotated speed
(r/min) |
KW
|
t/h
|
m
|
|
|
LG2.0*8
|
2-2.5
|
1.8
|
7
|
11.5
|
15
|
8-10
|
8.3*3.5*3.3
|
|
LG2.0*8
|
2-2.5
|
2.0
|
8
|
11
|
18.5
|
10-15
|
9.1*3.6*3.5
|
|
LG2.2*8
|
2-2.5
|
2.2
|
8
|
10.5
|
22
|
15-20
|
9.5*4.4*3.9
|
1.Can change the voltage and plugs or not ?
We are manufacturer, mostly products we can change the voltage and plugs. Pls kindly tell me the voltage and plugs that you need before the order.
2.What Methods of Payment Are Acceptable?
Telegraphic Transfer (T/T): we accept 30% T/T deposit before production and 70% T/T Balance before shipment. 100% payment for sample orders.
Western Union: we accept 100% payment via the western union.
3.What is the procedure for making claims for damages or shortages?
All of our products will get fully test before delivery. All shortages must be reported to us within 7 days of receiving the shipment. If the goods were made by carriers then damages need to be reported to them and us. Please make sure that you keep the original shipping box for them to inspect. So please report to us damages made by carriers so that we may file a claim on your behalf.
